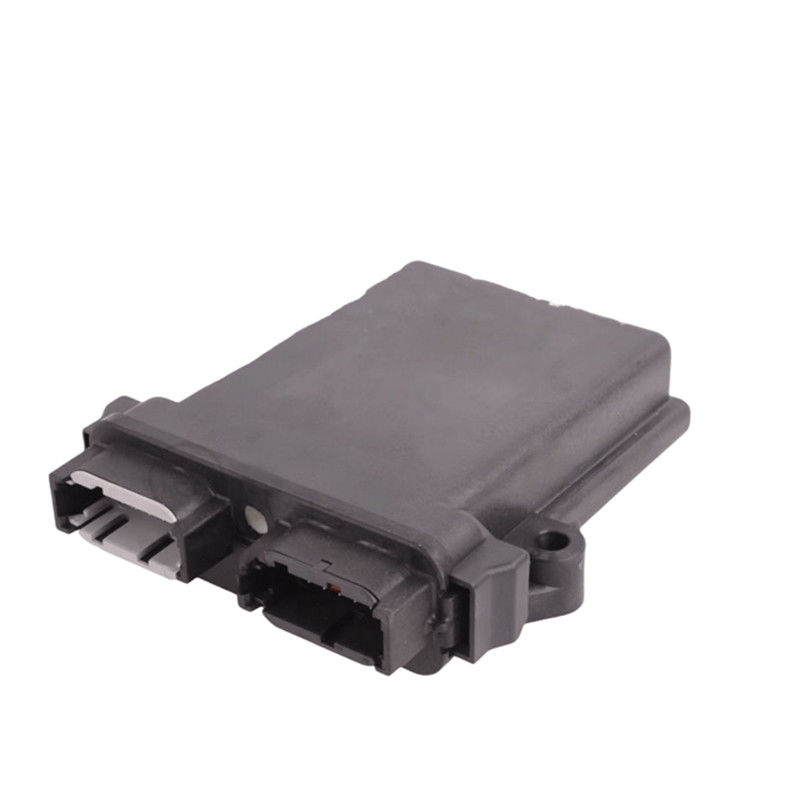

Jlg 1001094484 Ground Control Electronic Card USM Module Controller For JLG lifts

Overview

The JLG 1001094484 Controller, USM Module is a critical electronic component designed to manage and regulate the functions of JLG aerial work platforms. Engineered to meet or exceed OEM performance standards, this module plays an essential role in ensuring that scissor lifts, boom lifts, and other JLG machines operate reliably and efficiently.

Key Features & Selling Points

OEM-Quality Performance:

Manufactured to JLG’s original specifications, the USM Module guarantees reliable and accurate control of your aerial lift’s operational functions. Some aftermarket versions even claim performance that meets or exceeds OEM standards.

Compact & Durable Design:

Its compact dimensions and robust construction are designed to withstand the harsh environments typical of construction and industrial applications.

Versatile Compatibility:

Specifically designed for JLG lifts, the module is compatible with various models, ensuring seamless integration into scissor lifts, boom lifts, and telehandlers.

Certification & Compliance:

Certain versions come with certifications such as CE, underscoring adherence to international quality and safety standards.

Recommended Applications

Aerial Work Platforms:

Ideal for integration into scissor lifts, boom lifts, vertical lifts, and telehandlers, ensuring precise control and operational safety.

Construction & Industrial Use:

Suitable for environments that require robust material handling solutions, such as construction sites, industrial warehouses, and maintenance operations.

Aftermarket Replacements:

Perfect for companies looking to reduce downtime with a cost-effective, yet reliable, replacement for a faulty or outdated controller module.

Preventive Maintenance & Upgrades:

Can be used during routine maintenance checks or as an upgrade to improve the operational efficiency of existing JLG equipment.

Installation & Maintenance Tips

Installation:

• Qualified Technician Required: Always have a certified service technician or an authorized JLG service center install the controller to ensure compliance with technical specifications.
• Compatibility Verification: Confirm that the USM Module is fully compatible with your specific JLG model by cross-referencing part numbers, serial numbers, and machine specifications.
• Proper Wiring & Connections: Follow the manufacturer’s wiring diagrams and installation manuals. Secure all electrical connections and ensure that mounting hardware is properly installed to prevent vibrations or disconnections.
• Pre-Installation Inspection: Before installation, inspect the unit for any visible damage or defects. Ensure that the work area is clean and that all necessary tools and safety equipment are available.

​

Maintenance:

• Regular Inspection: Periodically inspect the module for signs of wear, corrosion, or damage. Check the wiring and connectors for secure attachment and insulation integrity.
• Environmental Considerations: Ensure adequate ventilation around the controller to prevent overheating, especially in high-temperature or dusty environments.
• Functional Testing: After installation and during routine maintenance, perform system tests to verify that the controller is operating as intended. Any anomalies should be addressed immediately.
• Follow Preventive Maintenance Schedules: Adhere to the maintenance guidelines provided in the JLG service manual. Routine maintenance can prevent minor issues from developing into major failures.
• Documentation & Support: Keep records of all inspections, repairs, and maintenance actions. In case of persistent issues, consult your supplier or an authorized service center for further diagnostics and support.
•
